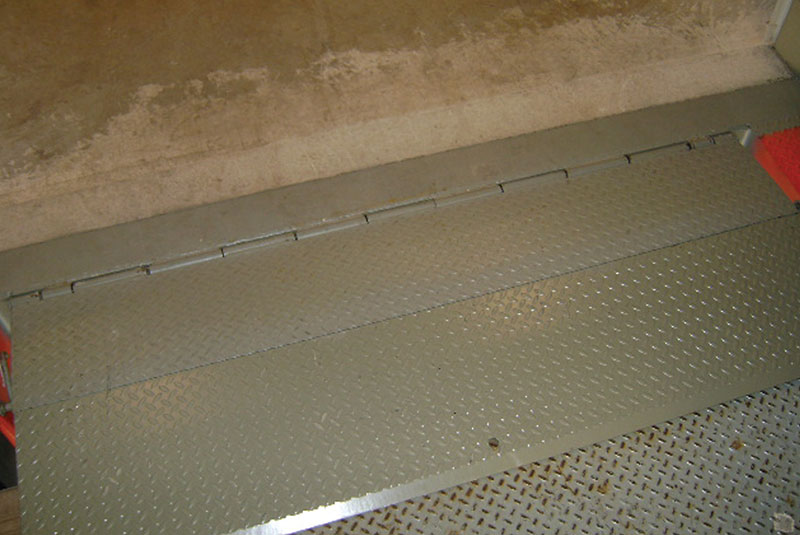

The DLM HED Series Edge-of-Dock is a full featured, fully hydraulic choice for your Edge-of-Dock requirements. The HED Series Edge-of-Dock is safe, easy to operate and requires minimal maintenance over the life of the product. A single push button controls both leveler extension and retraction functions and permits the operator an ergonomically advantaged position to operate the leveler. A choice of single or three Phase voltage is available.
The HED is offered in deck widths of 66", 72", 78" & 84" with total unit widths (including bumpers) of 104", 110", 116", & 122". Standard capacities are 20K, 25K, 30K, & 35K CIR (comparative industry rating).
|MODEL||DECK WIDTH - TOTAL UNIT WIDTH|
|HED-66||66" - 104"|
|HED-72||72" - 110"|
|HED-78||78" - 116"|
|HED-84||84" - 122"|

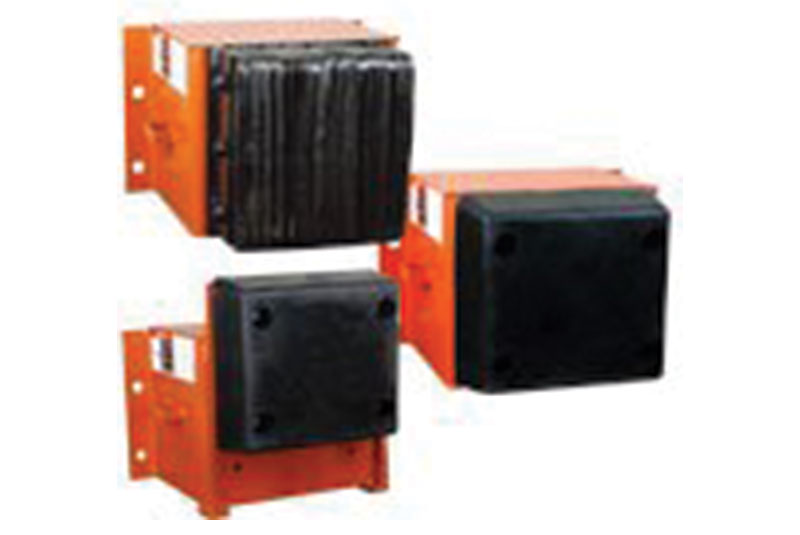

Optional 18" tall steel faced or laminated bumpers available. Optional sliding bumpers that rise as the truck is being loaded and reduce wear also available.

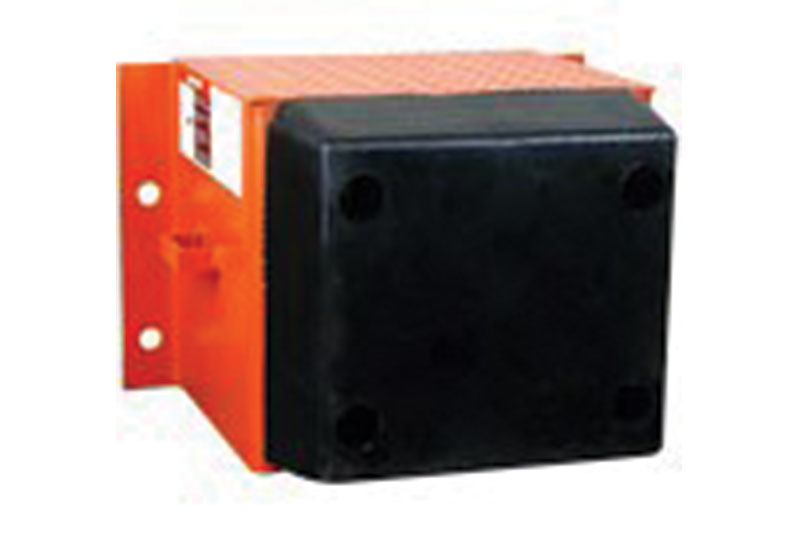

Each unit ships with 12x13 heavy duty bumper blocks with 4" thick Tuf-Cord rubber bumpers.

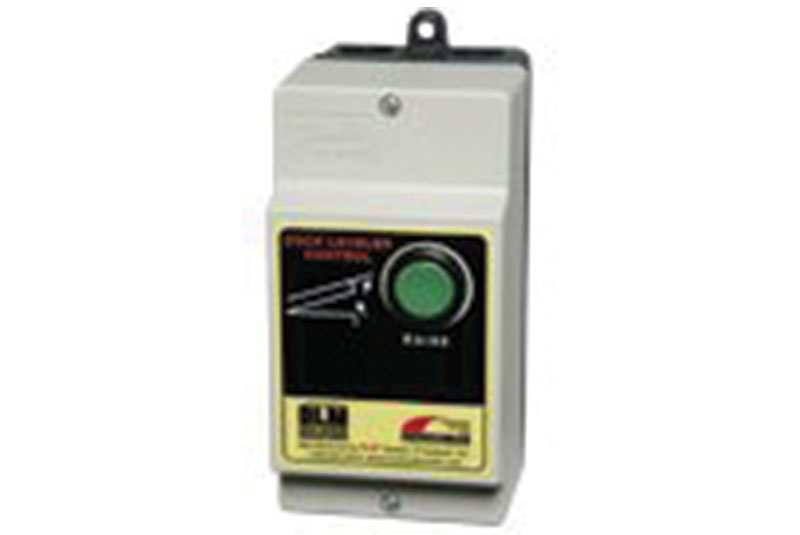

Simple push button activation. 115V single phase motor as standard. Motor overload protection included.

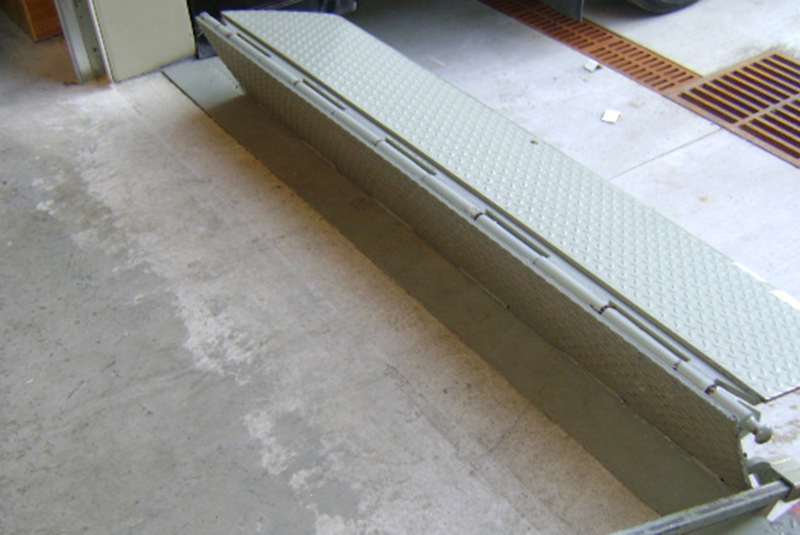

Additional full width bar stock hinge support increases hinge life by distributing loads throughout the leveler hinge.
Entire length of leveler lip edge tapered for smooth rollover and to reduce fork truck tire wear.

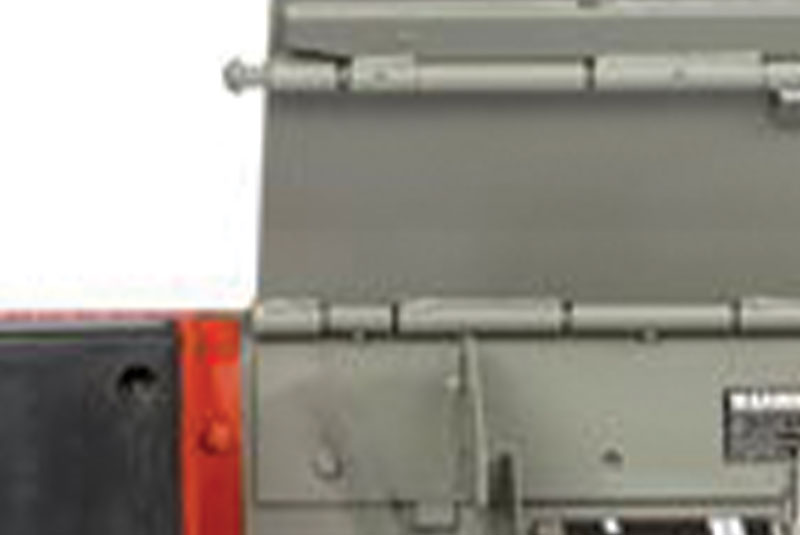

Two vertical steel gussets aid in supporting the leveler while in use reducing maintenance and increasing leveler life.
