CentraAir® Series Air Powered Leveler
Pit Style, Compressed Air Powered Dock Leveler
The DLM® CentraAir® (CA) air-powered dock leveler incorporates the use of existing plant air or dedicated compresser and an industrial automotive-grade air bellows system to raise and lower the platform. It's operated with "push button" activation and requires no electricity in the pit, making the unit perfect for wash down applications or wet environments.
The CA Air-Powered Leveler is an environmentally friendly addition to any material handling operation and will have minimal effect on the building's electrical footprint. This leveler is available in a wide range of sizes and capacities and can be modified for special applications.
Standard CentraAir Series sizes include 6’, 6’6”, & 7’ standard widths, and 6’, 8’ & 10’ standard lengths. Standard capacities for the CentraAir Series are 25K, 30K, 35K, 40K, 45K, & 50K CIR (Comparative Industry Rating).
Patent US 8,627, 529
Now available with
SPECIFICATIONS
| MODEL | NOMINAL SIZE |
|---|---|
| CA-66 | 6' x 6' |
| CA-68 | 6' x 8' |
| CA-610 | 6' x 10' |
| CA-656 | 6'6" x 6' |
| CA-658 | 6'6" x 8' |
| CA-6510 | 6'6" x 10' |
| CA-76 | 7' x 6' |
| CA-78 | 7' x 8' |
| CA-710 | 7' x 10' |
| DYNAMIC CAPACITY / COMPARATIVE INDUSTRY RATING |
|---|
| 12,500 / 25,000 |
| 15,000 / 30,000 |
| 17,500 / 35,000 |
| 20,000 / 40,000 |
| 22,500 / 45,000 |
| 25,000 / 50,000 |
-
Pneumatic push button operation
Push-button activation without any electrical needed. Simple push button activation opens the leveler mounted valve raising the leveler. Release of the button allows leveler to gently lower onto the truck.
-
Sliding Style Toe Guards
This leveler utilizes sliding style toe guards for added safety
-
Simple two way air valve
Very reliable and low maintenance air valve system controls the flow of air to inflate the bellows and then lower the leveler.
-
Four sided box construction
Stronger more durable four sided box construction
-

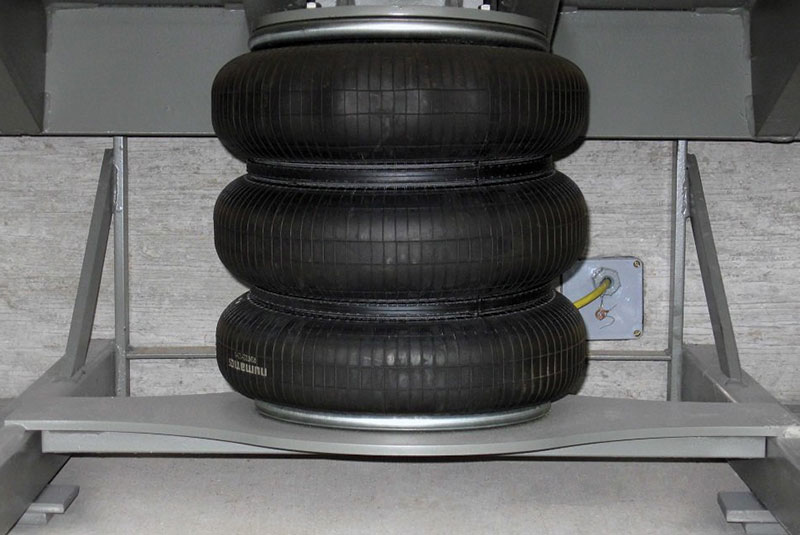

Air bellows lifting system
Utilizes the same lift technology as air ride suspension trailers to raise the leveler and extend the lip.
-
Pull chain activation
A simple pull of the chain ring located in the leveler deck raises the unit for use
-
Connect Online
Option to connect to myQ Dock Management and view the leveler activity online.
RELATED PRODUCTS
-
LHD Series Hydraulic Leveler
Pit Style Hydraulic Dock Leveler
-
TPR® Series Automatic Restraint
Loading Dock Truck Restraint
-
PowerStop® Series Automatic Restraint
Automatic Loading Dock Truck Restraint
-
PowerStop® Series Manual Restraint
Manual Loading Dock Truck Restraint
-
TPR UniLock® Automatic Restraint
Loading Dock Truck Restraint
-

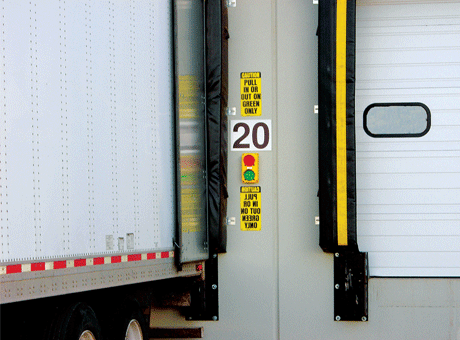

Dock Alert
