VHD Hydraulic Leveler
Pit Style Hydraulic Dock Leveler
The DLM VHD Series dock leveler is a fully hydraulic, feature-packed product for the value-minded consumer. The VHD Series leveler combines superior structural steel ramp design with over 40 years of proven hydraulic operation to produce a safe, reliable, yet economical hydraulic dock leveler. Hydraulic levelers use integrated features to improve safety and also save valuable time in operation and maintenance.
VHD Series levelers come in 6’, 6’6”, & 7’ standard widths, and 6’, 8’, 10’, & 12’ standard lengths. Other lengths may be available upon request. Standard capacities for the VHD Series are 25K, 30K, 35K, 40K, 45K, 50K, 60K, and 80K CIR (Comparative Industry Rating).
Available with
SPECIFICATIONS
| MODEL | NOMINAL SIZE |
|---|---|
| VHD-66 | 6' x 6' |
| VHD-68 | 6' x 8' |
| VHD-610 | 6' x 10' |
| VHD-612 | 6' x 12' |
| VHD-656 | 6'6" x 6' |
| VHD-658 | 6'6" x 8' |
| VHD-6510 | 6'6" x 10' |
| VHD-6512 | 6'6" x 12' |
| VHD-76 | 7' x 6' |
| VHD-78 | 7' x 8' |
| VHD-710 | 7' x 10' |
| VHD-712 | 7' x 12' |
| DYNAMIC CAPACITY / COMPARITIVE INDUSTRY RATING |
|---|
| 12,500 / 25,000 |
| 15,000 / 30,000 |
| 17,500 / 35,000 |
| 20,000 / 40,000 |
| 22,500 / 45,000 |
| 25,000 / 50,000 |
| 30,000 / 60,000 |
| 40,000 / 80,000 |
-
In-Line Velocity Fuse
Dock leveler free fall protection is built into the main lifting cylinder and can never be removed. Far safer than standard inline velocity fuse protection.
-
Optional Inter-lockable Electrical Push Button Controls
The leveler can utilize an inter-lockable electrical push-button. This feature allows the leveler to be easily interlocked to the overhead door, red & green outside lights truck restraints or other items at the loading dock.
-
Sliding Style Toe Guards
This leveler utilizes sliding style toe guards for added safety
-
All Structural Steel Design
This leveler utilizes all structural steel support members providing the most reliable support and strongest bridge.
-

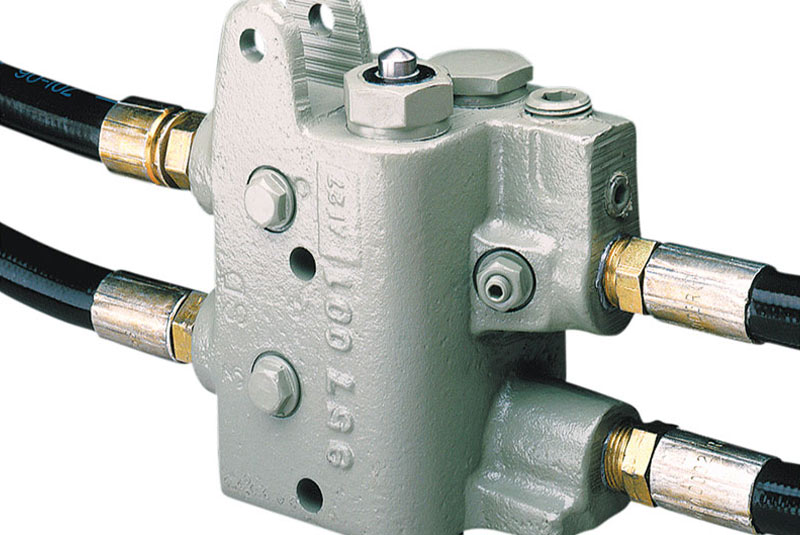

Fluid Logic Block
The Fluid Logic Block mechanically controls the flow of hydraulic fluid from the main lifting cylinder to the lip cylinder, this method is far more reliable than standard coil and shuttle valve style flow diversion
-
Recessing Lip Cylinder
The lip cylinder recesses away from the lip after the leveler has rested on the back of the truck preventing wear on the seals while the leveler moves up and down with the bed of truck.
-
Easy Clean Design
The VHD frame design allows for easy cleaning of the pit.
