iDock® Controls
Loading Dock Communication and Controls
Loading dock levelers and vehicle restraints from DLM can now be equipped with iDock® Controls. These technologically advanced controls provide an efficient interface with membrane dome button technology for ease of use and an interactive message display for valuable equipment usage, instructions, notifications and other information. iDock Controls also have a 3-color light communication combined into one large LED light assembly to clearly indicate the conditions of the dock.
iDock Controls can now be connected to the cloud with myQ® Dock Management, a web-based software for loading dock analytics. Simply pair your controllers with an iDock Gateway and setup your online account at myQ.com. From there you'll be able to view visual reports of your loading dock activity and efficiency. You can also receive text or email notifications of events at the docks.
SPECIFICATIONS
| Enclosures | |
|---|---|
| 12" tall x 10" wide | |
| 14" tall x 12" wide (Standard) | |
| 16" tall x 14" wide | |
| 20" tall x 16" wide |
PRODUCT DOCUMENTS
- iDock Controls Brochure
- myQ Dock Management Brochure
- Truck Present Sensor
- iDock Controls Spec Sheet
- iDock Sensors with myQ Brochure
- iDock Controls Owner’s Manual
- iDock Optional Hardware Manual
- iDock Sensor Retrofit Kit
- iDock Logic 5.0 Integration Retrofit
- Auxiliary Door Limit Sensor Installation instructions
- Door Closed Sensor Kit Installation Guide
- Door Open Sensor Kit Installation Guide
- Fluid Level Sensor Kit (Metal Reservoir) Installation Guide
- Fluid Level Sensor Kit (Plastic Reservoir) Installation Guides
- Forklift Activity Sensor Installation Guide
- Leveler Stored Sensor Retrofit Kit Installation Guide
- Leveler Stored Sensor Retrofit Kit Installation Guide
- Vehicle Present Sensor Installation Guide
- iDock Controls Owner’s Manual (Serial Range: C1000-C34849)
- Spanish iDock Sensors Brochure
- Spanish iDock Controls Owner's Manual
- French iDock Controls Owner's Manual
-
Truck Present Sensor
Add a low-mounted truck present sensor to the face of the dock and gain visibility into trailer locations and their turn times.
-
Interactive Message Display
With the iDock Controls Message Display, operators can view equipment and system information, maintenance history, counters, and more.
-
Integrated Controls
iDock Controls can operate and interlock a DLM loading dock leveler and vehicle restraint, as well as an optional door operator and other dock light accessories.
-
Sequence Instructions
If the operator is attempting to activate equipment out of sequence, the iDock Controls Message Display will provide a clear notification of the next button to press.
-
3-in-1 Light Communication
iDock Controls utilize green, red, and amber lights in one large LED light assembly for a clear indication of the dock conditions and whether its safe to proceed.
-
Easily Troubleshoot Faults
LED lights on the controller terminal boards provide a clear indication where to troubleshoot for any faults.
-

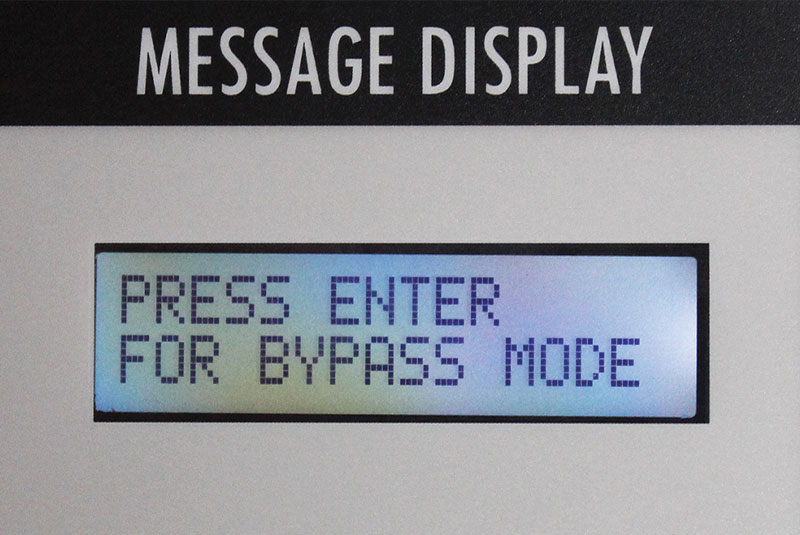

Bypass Notification
iDock Controls will indicate if an installed vehicle restraint is unable to secure a trailer's Rear Impact Guard (RIG), and the Message Display will provide instructions on how to enter Bypass Mode if necessary.
